DROK Electronic Thermostat Controller, DC 6-30V 24V Digital Temperature Control Board -50 to +110 Degree Celsius High Accuracy LCD Digital Micro Temp Control Switch Module with Waterproof Sensor Probe

DROK Electronic Thermostat Controller, DC 6-30V 24V Digital Temperature Control Board -50 to +110 Degree Celsius High Accuracy LCD Digital Micro Temp Control Switch Module with Waterproof Sensor Probe

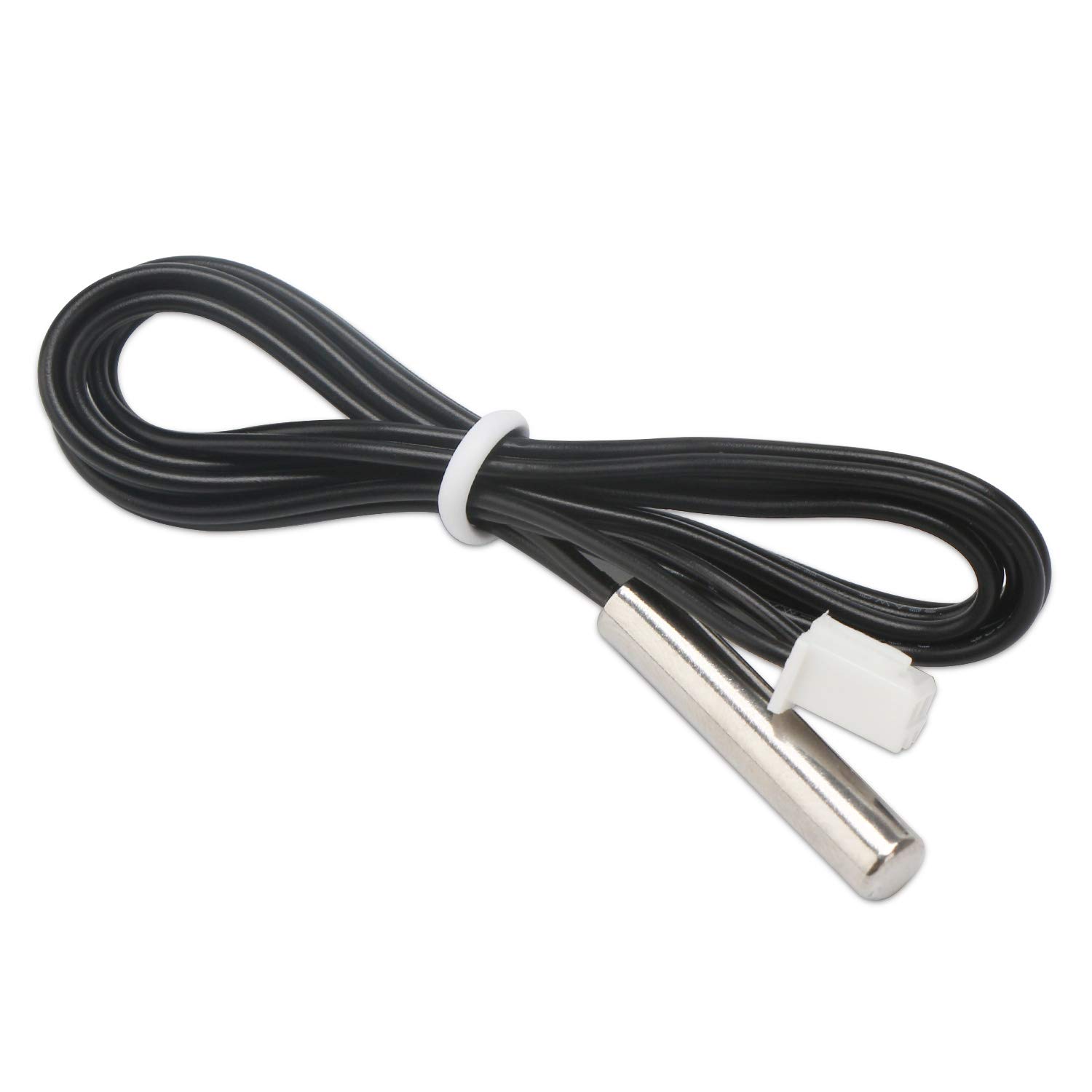

  • DROK electronic thermostat controller power supply is DC 6-30V or 5V micro USB; control load current is 10A (Max); test temperature is -50~110℃; sensor length is 0.5 meter.
  • High current: Our digital temperature control board adopts high density PC board installation technology, the switch capacity can be up to 10A in spite of the small size.
  • LCD display: Designed with bright LCD display, people can check the temperature clearly from any angle.
  • User-friendly functions: The thermostat module has the function of real-time temperature reporting, temperature correction function, high-temperature alarm, emergency stop function and support UART Set, which make the module reliable and easy to use.
  • Applications: With waterproof temperature sensor probe, it can be widely used for domestic appliance, office machine, audio, equipment, automobile, etc. （Remote control TV receiver, monitor display, Audio,Raspberry Pi equipment high rushing current use application）
Select Number of Items
From $11.99
DROK Electronic Thermostat Controller, DC 6-30V 24V Digital Temperature Control Board -50 to +110 Degree Celsius High Accuracy LCD Digital Micro Temp Control Switch Module with Waterproof Sensor Probe—
$11.99
Product image 1
Product image 2
Product image 3
Product image 4
Product image 5
Product image 6
Product image 7

Description

  • DROK electronic thermostat controller power supply is DC 6-30V or 5V micro USB; control load current is 10A (Max); test temperature is -50~110℃; sensor length is 0.5 meter.
  • High current: Our digital temperature control board adopts high density PC board installation technology, the switch capacity can be up to 10A in spite of the small size.
  • LCD display: Designed with bright LCD display, people can check the temperature clearly from any angle.
  • User-friendly functions: The thermostat module has the function of real-time temperature reporting, temperature correction function, high-temperature alarm, emergency stop function and support UART Set, which make the module reliable and easy to use.
  • Applications: With waterproof temperature sensor probe, it can be widely used for domestic appliance, office machine, audio, equipment, automobile, etc. （Remote control TV receiver, monitor display, Audio,Raspberry Pi equipment high rushing current use application）
